The 3500 lb 1" 10" Replacement Magnet Kit for electric trailer brake assemblies is an essential component to restore your trailer’s braking performance. Designed for 10" brake assemblies on 3,500-lb axles, this kit offers a cost-effective way to maintain safety and reliability without replacing the entire brake assembly. With compatibility spanning leading brands such as AxleTek, Dexter, Lippert (LCI), IAC, and AL-KO, you can trust this magnet kit to deliver reliable stopping power and smooth, controlled braking.

Product Features

• Perfect Fit for 3,500-lb Axles: Specifically engineered for 10" brake assemblies, ensuring an exact match for your 3,500-lb trailer axle.


• Broad Compatibility: Works seamlessly with a range of manufacturers, including AxleTek, Dexter, Lippert (LCI), IAC, and AL-KO.

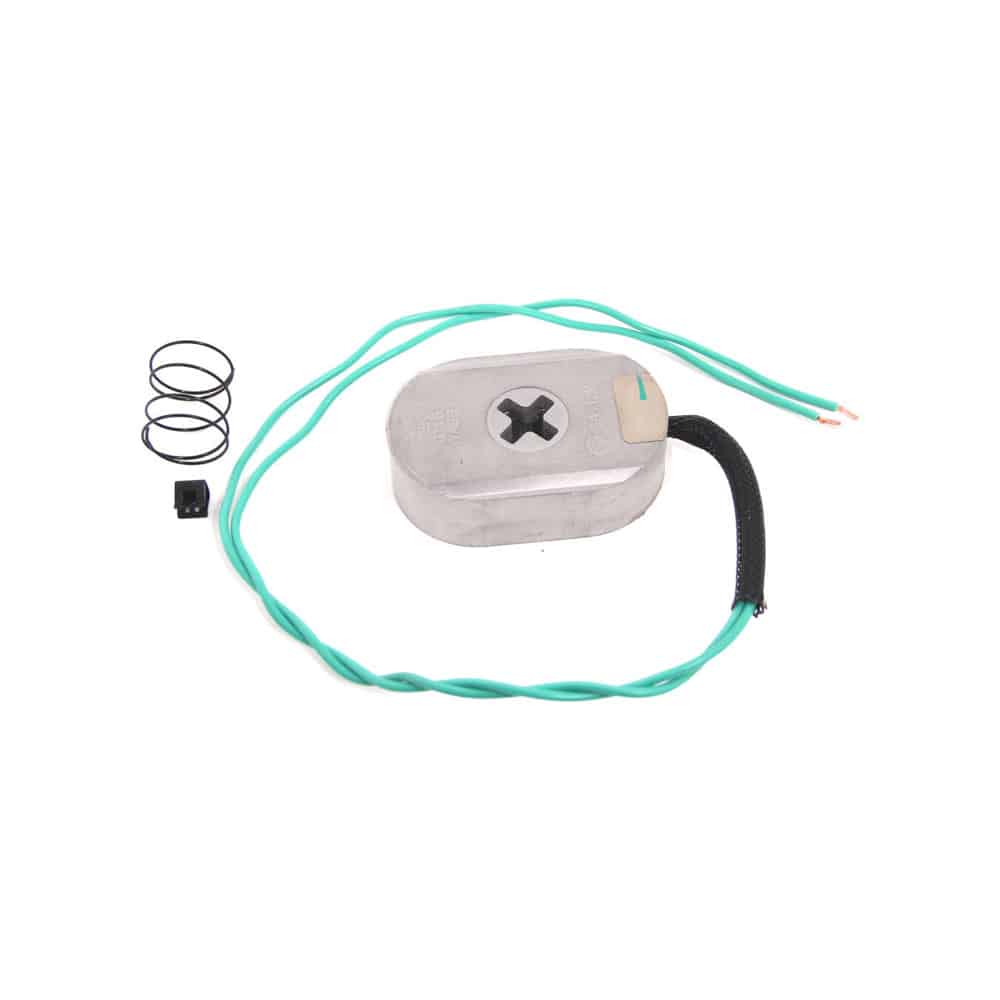

• Oval Design: With dimensions of approximately 2" long x 3-1/8" wide x 1" tall, the magnet’s shape and size provide secure, stable contact within the brake assembly.

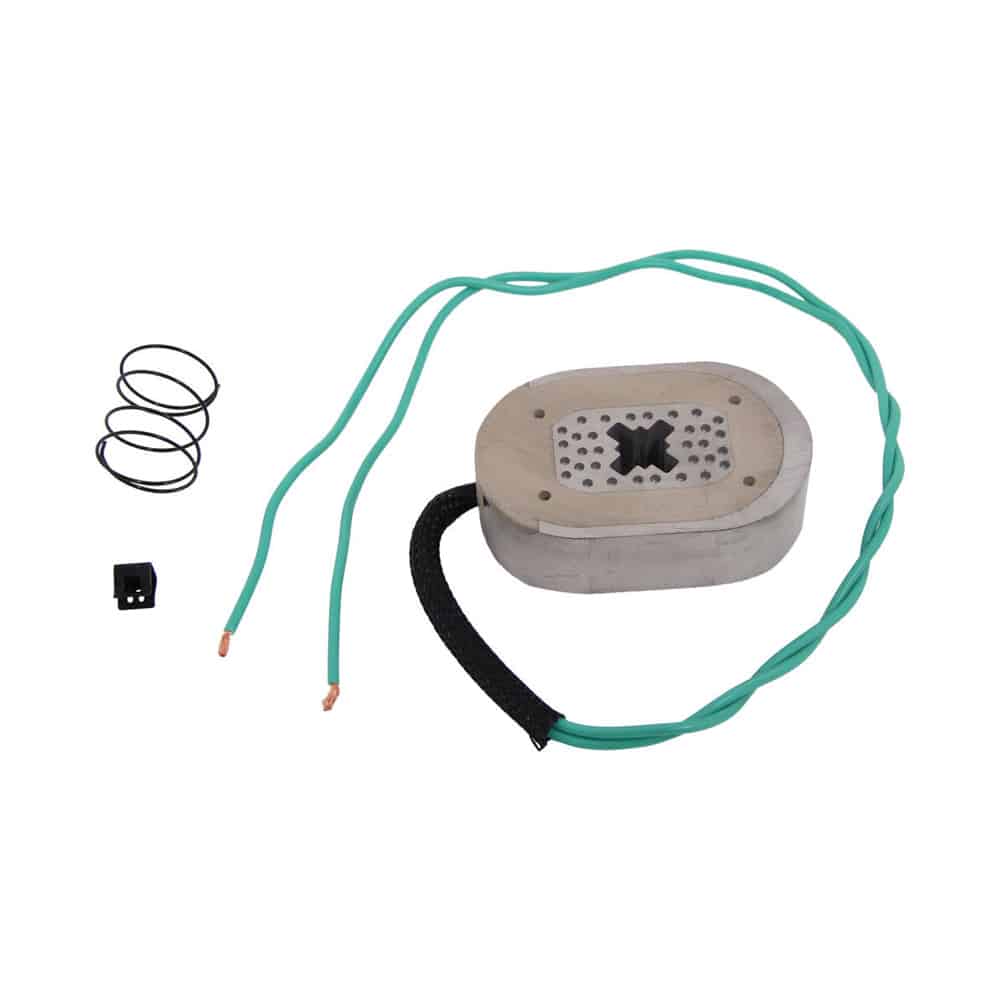

• Complete Kit: Comes with the magnet, retaining clip, and spring, giving you everything needed for a straightforward replacement process.


• Durability and Performance: Built to withstand frequent braking, varying road conditions, and the heat generated during braking for long-lasting reliability.

Why a Functional Magnet is Essential

The brake magnet in an electric trailer brake assembly is the heart of the system’s functionality. When you apply the brakes, an electrical current energizes the magnet, causing it to grip the brake drum’s surface. This action forces the brake shoes against the drum walls, creating friction that slows and stops the trailer. A worn-out or damaged magnet can lead to diminished braking power, uneven shoe wear, and potential safety risks. By ensuring your brake magnet is in top condition, you maintain safer towing, smoother stops, and prolonged life for other brake components.

Why Replace Just the Magnet Instead of the Whole Assembly?

When you notice reduced braking efficiency, it’s tempting to consider swapping out the entire brake assembly. However, if the root cause is a failing magnet, a full assembly replacement may be unnecessary and costly. Replacing just the magnet is often more budget-friendly, less time-consuming, and equally effective.

Reasons to Replace Only the Magnet:

• Cost Savings: Magnets are a fraction of the cost of complete brake assemblies, helping you maintain your trailer without straining your budget.


• Targeted Repair: Addressing the exact component that’s failing ensures you don’t waste money or resources on parts that are still in good condition.


• Reduced Downtime: Magnet replacement takes less time than installing a full assembly, getting you back on the road sooner.


• Preserving Other Components: If your brake shoes, springs, and hardware remain in good shape, there’s no need to discard them. Simply restore the magnet to regain optimal braking performance.

How to Replace a Brake Magnet

Before You Begin: Park your trailer on a level surface, chock the wheels, and ensure you have the appropriate tools and safety equipment. Gloves, eye protection, and following your trailer’s manual are all recommended.

1. Remove the Wheel and Hub/Drum: Loosen the lug nuts, raise the trailer axle with a jack, and support it securely with jack stands. Remove the wheel to expose the hub/drum. Slide the drum off the spindle to access the brake assembly.


2. Identify the Magnet: Inside the brake assembly, locate the existing magnet at the bottom. The magnet will typically be held in place by a retaining clip and spring.


3. Disconnect Wiring: Carefully detach the magnet’s electrical leads. Make note of the wiring configuration to ensure proper reconnection later.


4. Remove the Old Magnet: Using pliers or a flat-head screwdriver, remove the retaining clip and spring. Gently pull the old magnet free. Inspect the area for dirt, debris, or excessive wear.


5. Clean the Assembly: Wipe down the interior surfaces of the brake assembly with a clean rag. If necessary, use a mild solvent to remove built-up grime. Ensure everything is dry and free of contaminants before proceeding.


6. Install the New Magnet: Place the new magnet into the designated area at the bottom of the assembly. Insert the spring and retaining clip provided with the kit, ensuring the magnet is held firmly in place but still able to move slightly as required.


7. Reconnect Wiring: Reattach the electrical leads to the new magnet, confirming that connections are secure and insulated. Ensure wires are routed clear of moving parts.


8. Reassemble the Hub/Drum and Wheel: Slide the drum back onto the spindle and then reinstall the wheel, tightening the lug nuts to the manufacturer’s recommended torque specifications.


9. Test Your Brakes: Lower the trailer back onto the ground and perform a low-speed test to confirm that the brakes engage smoothly and evenly. Listen for unusual noises or feel for uneven braking. If all seems normal, your magnet replacement was successful.

Installation Tips for Best Results

• Follow Manufacturer’s Guidelines: Each brake assembly may vary slightly. Review any documentation provided by the axle or brake manufacturer to ensure proper installation and adjustment.


• Check Other Components: While the assembly is open, take a moment to inspect brake shoes, springs, and backing plates. If any other parts are showing signs of wear, address them now to save time later.


• Use Quality Tools: Working with well-maintained, appropriate tools reduces the risk of damaging parts and makes the job smoother.


• Maintain Proper Wiring: Ensure wiring connections are tight and properly insulated to prevent electrical faults that could compromise braking performance.

Long-Term Maintenance and Care

Over time, heat, friction, and road debris can gradually affect brake components. To get the most out of your new magnet and maintain safe braking:

• Inspect Regularly: Check your brakes at least once a year or every 12,000 miles for signs of wear, noise, or diminished performance.


• Keep It Clean: Dirt and debris can accumulate inside the hub. Clean and inspect during scheduled maintenance to prolong component life.


• Monitor Wiring: Frayed or loose wires can reduce the effectiveness of your brake magnet. Keep wiring secure and inspect periodically.


• Replace as Needed: If you notice any issues with braking response, uneven wear patterns, or unusual noises, don’t hesitate to replace worn parts before a minor problem becomes major.

Conclusion

The 3500 lb 1" 10" Replacement Magnet Kit offers an efficient, cost-effective way to restore braking performance without the expense and hassle of replacing the entire assembly. By focusing on the component that needs attention, you can ensure smooth stops, confident towing, and longer service life for your trailer’s braking system. Regular inspections, careful installation, and proper maintenance will keep your trailer safe and ready for any journey.
